Doubling scoreboard
A remote panel designed for duplicating weight readings from a measuring device is used quite often and widely today. The main advantage of the "Keli Sensing" panel is the ability to provide the weighing result to several people at the same time and the use of several displays to optimize the weighing process. This is especially relevant in the work of warehouses, factories, as well as during trade or procurement activities.
The device and principle of operation of doubling boards
The remote duplicate board is a passive device, that is, it shows only the information that the weight indicator transmits. For the correct selection of a remote display, it is necessary to accurately determine its technical characteristics (height of the display digits, display type, housing material, distance from the weighing terminal in meters). In addition, a high-quality scoreboard should be equipped with the brightest LEDs.
Characteristics of doubling boards

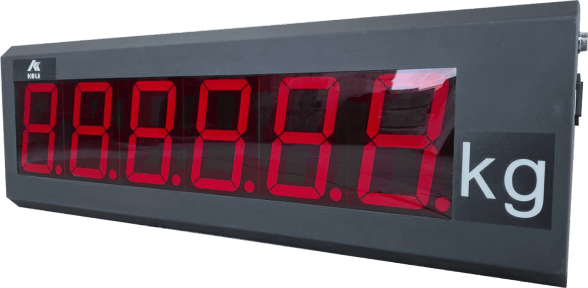

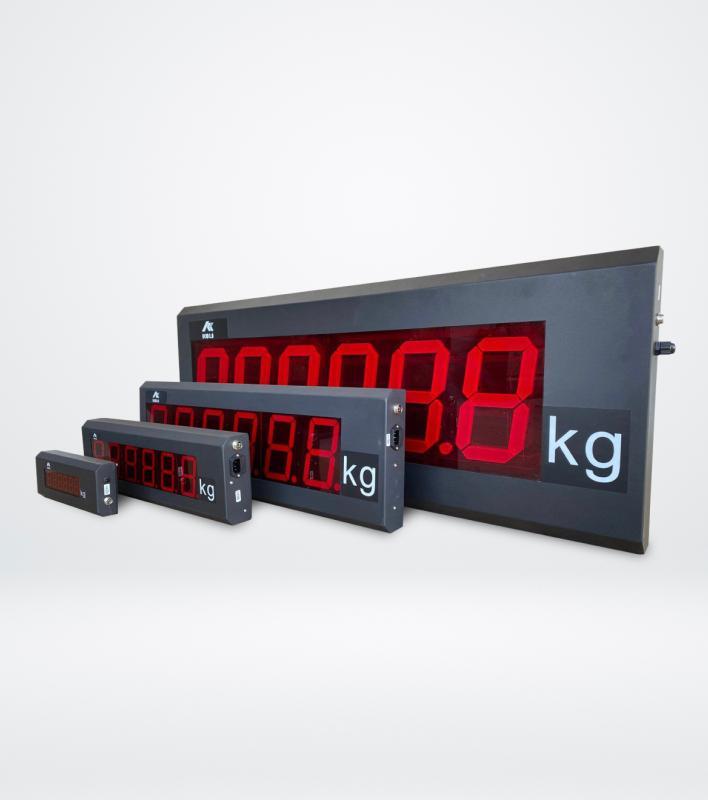

Segment boards display 6 symbols, where each symbol is divided into separate segments illuminated by red light. The housing of the segment boards is made of high-quality metal. It is possible to connect via the RS232 interface or by the current loop method.
In addition to the main functions of a duplicate board, the matrix model can display programmable text. Thanks to this function, you can specify any text information (up to 1000 characters), as well as upload a logo or image. The dashboard is equipped with a matrix LED bright display, which is 2 times brighter than conventional models. The matrix board can also be used to display advertising information. The material of the dashboard body is high-quality metal. The case has control buttons for setting data transmission parameters and a real-time clock. It is possible to connect via the RS232 interface or by the current loop method.
